Alphavision

Alphavision Basic Universal TV Wall Mount – Swivel & Tilt (Up to 55")

Flexible TV Wall Mount for TVs up to 55 Inches

The swivelling and tilting TV wall mount enables flexible and space saving wall installation of TVs and compatible monitors with a screen size from approx. 32 to 55 inches. The stable dual arm allows individual screen alignment and ensures a comfortable viewing angle.

For approx. 32 to 55 inches Suitable for many TVs and monitors up to approx. 140 cm screen diagonal.
VESA up to 400 × 400 mm Compatible with VESA 200 × 200, 200 × 400 and 400 × 400 mm.
Swivelling and tilting The TV can be flexibly adjusted to the seating position, room layout and viewing angle.
Stable dual arm made of steel Robust steel construction for stable and secure wall installation.
Mounting kit included Mounting material for straightforward installation is included in the scope of delivery.

Check before buying: The decisive factors for compatibility are the VESA dimensions, the screen size and the weight of your TV. In addition, the wall must be suitable for the total weight of the TV and wall mount.

Item number VP-944
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentyone.com/7koenoygbxtt/plugin/16/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "GSKJF2K88F6B4"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "c27c0531d81d4c79278cc9103fdf72ee"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentyone.com/7koenoygbxtt/plugin/16/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "GSKJF2K88F6B4"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "c27c0531d81d4c79278cc9103fdf72ee"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('6aa04ab2b999a', 'paypal', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('6aa04ab2b999a', 'paypal', 'paypal', 'rect', 'gold'); }
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentyone.com/7koenoygbxtt/plugin/16/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "GSKJF2K88F6B4"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "c27c0531d81d4c79278cc9103fdf72ee"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn02.plentyone.com/7koenoygbxtt/plugin/16/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "GSKJF2K88F6B4"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "c27c0531d81d4c79278cc9103fdf72ee"); }

* Incl. VAT excl. Shipping

Alphavision TV Wall Bracket – Sturdy Steel Mount for TVs up to 55"

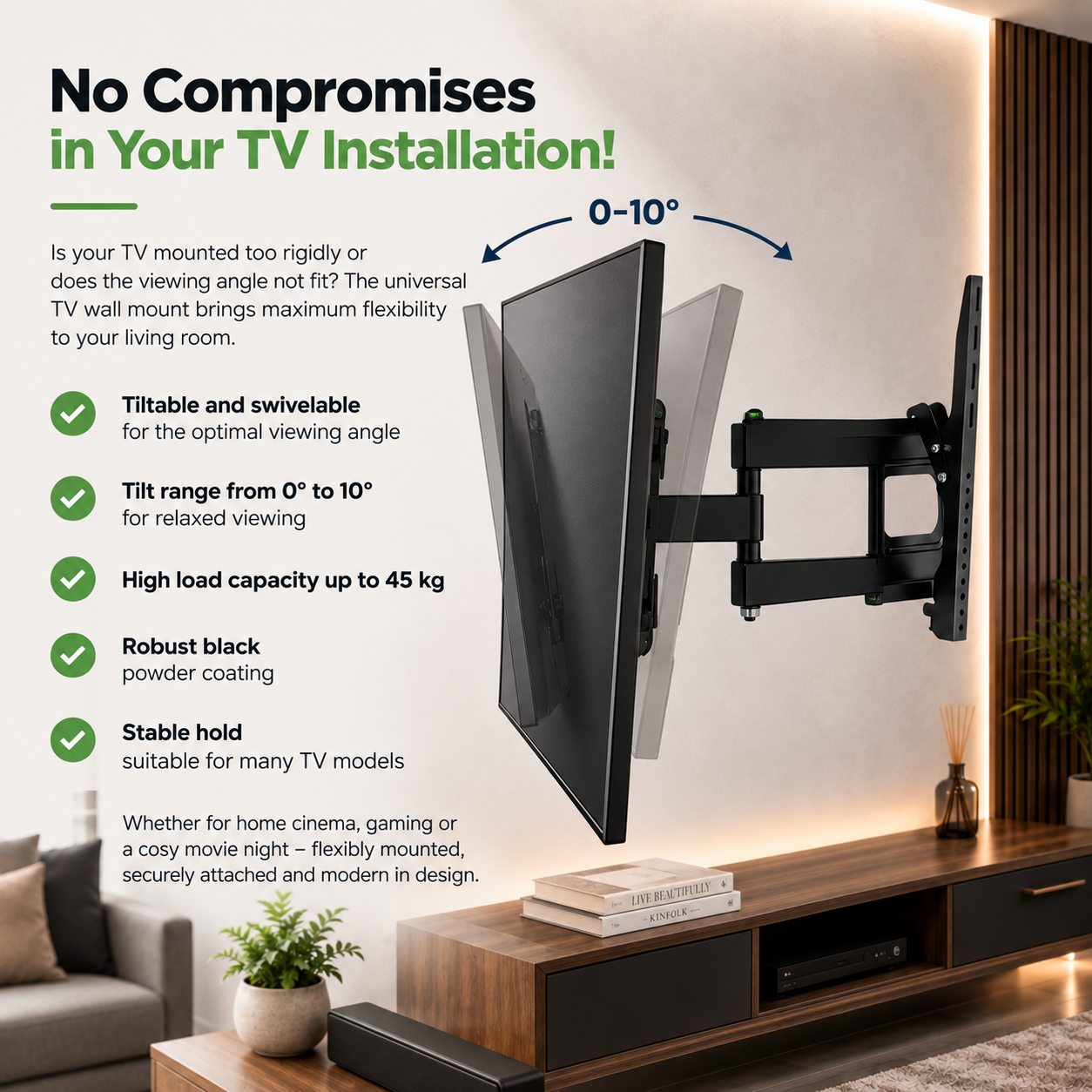

Swivel and tilting TV wall mount in the living room



Stable TV Wall Mount for TVs up to 55 Inches

The swivel and tilting TV wall mount offers a safe and flexible solution for TVs from approx. 32 to 55 inches. Thanks to its robust steel construction, high load capacity and adjustable positioning, it is ideal for living rooms, bedrooms, conference rooms and home cinema applications.

Swivel TV wall mount
↔

Swivels

The flexible dual arm allows comfortable alignment of the TV for optimal viewing from different positions in the room.

Tilting TV wall mount
↕

Tiltable

The integrated tilt function reduces reflections and ensures a comfortable viewing angle for watching TV or gaming.

Stable steel construction TV mount
◼

High Stability

The solid steel construction ensures secure wall mounting and high load capacity for many TV models.

TV wall mount side view

Swivel & Tilting TV Wall Mount up to 55 Inches

The high quality TV wall mount impresses with flexible adjustment options and stable workmanship. The extendable dual arm allows individual positioning of the TV while saving space in the room.

Suitable for many TVs with compatible VESA standards and ideal for home cinema, gaming or professional applications.



VESA: 200 x 200, 400 x 400 and 400 x 200



Technical Data at a Glance

Feature Details
Suitable Screen Size approx. 32 to 55 inches
Mounting Type Wall mounting
Function Swivel and tilting
Material Steel
Colour Black
VESA Compatibility 200 x 200, 400 x 400, 200 x 400
TV wall mount dimension drawing
!

Check VESA Dimensions Before Buying

Note: Please check the VESA compatibility and the maximum weight of your TV before installation.

Flexible TV Mounting

The ideal solution for space saving, stable and comfortable TV mounting with flexible alignment.

Safety and Warning Notices

Please read and observe the following safety information before installing and using the TV wall mount.

Important: Use the wall mount only for compatible TVs and monitors within the VESA dimensions and maximum permitted load capacity specified by the manufacturer. Improper installation may cause the TV to fall and may result in serious personal injury or property damage.

1. Intended Use
  • The wall mount is intended exclusively for mounting compatible TVs and monitors indoors.
  • Use the mount only with devices whose dimensions, weight and VESA mounting dimensions match the technical specifications of the mount.
  • Use for other purposes, overloading or structural modification of the mount is not permitted.
2. Check Compatibility Before Installation
  • Check the VESA mounting dimensions of your TV before installation.
  • This wall mount is designed for the VESA dimensions specified on the product page.
  • Also check the weight of the TV and never exceed the maximum permitted load capacity of the wall mount.
  • Screen size alone is not a sufficient criterion for compatibility.
3. Wall Condition and Fixing
  • Before installation, make sure that the wall can permanently and safely support the total weight of the wall mount and TV.
  • Only use fixing material that is suitable for the existing wall structure.
  • The supplied fixing material is not automatically suitable for every type of wall.
  • For drywall, timber frame walls, aerated concrete, hollow bricks or other special wall constructions, suitable special fixing material must be used.
4. Safe Installation
  • Follow the supplied installation instructions during installation.
  • If you are unsure about the wall condition, fixing method or load capacity, installation should be carried out by a qualified person.
  • Before drilling, make sure that there are no electrical, water, gas or other supply lines in the installation area.
  • Tighten screws and fixing elements securely. However, avoid overtightening, as this could damage components or the TV.
  • After installation, check whether the TV and mount are fully engaged or properly secured.
5. Risk of Crushing and Injury
  • The wall mount has movable joints and a swivelling dual arm.
  • Keep hands and fingers away from joints and moving parts when swivelling or tilting the TV.
  • Make sure that no cables are trapped or damaged between moving parts.
6. Cables and Connections
  • Route power, HDMI and other connection cables so that they are not under tension when the TV is swivelled or tilted.
  • Cables must not be trapped between the wall, mount or moving joints.
  • Damaged cables must no longer be used.
7. Child Safety
  • Children must not pull on, climb on or hold on to the TV or wall mount.
  • Keep screws, wall plugs and other small parts away from children during installation.
  • Small parts may pose a choking hazard if swallowed.
8. Regular Inspection
  • Regularly check that the wall fixing, screws, joints and TV mounting are firmly secured.
  • Also inspect the mount after heavier loads or unusual movements.
  • Do not continue using the wall mount if components are loose, damaged, deformed or corroded.

Note: Keep the installation instructions and safety information for future reference. If there is visible damage or any doubt about safe fixing, the wall mount must no longer be used.

Frequently Asked Questions About the TV Wall Mount

Answers about compatibility, VESA dimensions, installation and adjustment of the swivel and tilting TV wall mount for TVs from approx. 32 to 55 inches.

Does this TV wall mount fit my TV?

The wall mount is suitable for many TVs with a screen size of approx. 32 to 55 inches. In addition to the screen size, the most important factor is the VESA dimension on the back of your TV. VESA 200 × 200, 200 × 400 and 400 × 400 mm are supported. In addition, the weight of the TV must be within the permitted load capacity of the mount.

Which VESA dimensions does the TV wall mount support?

The TV wall mount supports the VESA dimensions 200 × 200 mm, 200 × 400 mm and 400 × 400 mm. The VESA dimension describes the horizontal and vertical distance between the mounting holes on the back of your TV. Please check this dimension before buying.

Can I swivel and tilt the TV?

Yes. The TV wall mount can be both swivelled and tilted. Thanks to the movable dual arm, the TV can be flexibly aligned. The tilt function can also help reduce unwanted reflections and adjust the viewing angle to the seating position.

Is mounting material for wall installation included?

Yes. A mounting kit is included in the scope of delivery. However, the supplied mounting material is not automatically suitable for every wall type. Especially for drywall, timber frame walls or other lightweight constructions, suitable fixing material must be used according to the wall structure.

Can the TV wall mount be installed on a drywall?

Installation on drywall is only possible if the wall structure, substructure and fixing material are suitable for the total weight of the wall mount and TV. Standard wall plugs for solid masonry or concrete must not be used for this without further inspection.

Is the wall mount also suitable for a 55 inch TV?

Yes. The wall mount is designed for TVs up to approx. 55 inches or 140 cm screen diagonal. The prerequisite is that the VESA dimension of the TV is compatible with the mount and that the permitted load capacity is not exceeded.

What material is the TV wall mount made of?

The wall mount is made of a robust steel construction and comes in black. The stable construction is intended for secure wall installation of compatible TVs and monitors in indoor areas.

Can I also attach a monitor to the wall mount?

Yes, in principle the mount can also be used for a compatible monitor. The prerequisite is that the VESA dimension, dimensions and weight of the monitor are within the specifications of the wall mount.

What should I check before installing the TV wall mount?

Before installation, check the VESA dimension and weight of your TV as well as the load capacity of the wall. Also make sure before drilling that there are no power cables, water pipes or other lines in the intended installation area.
